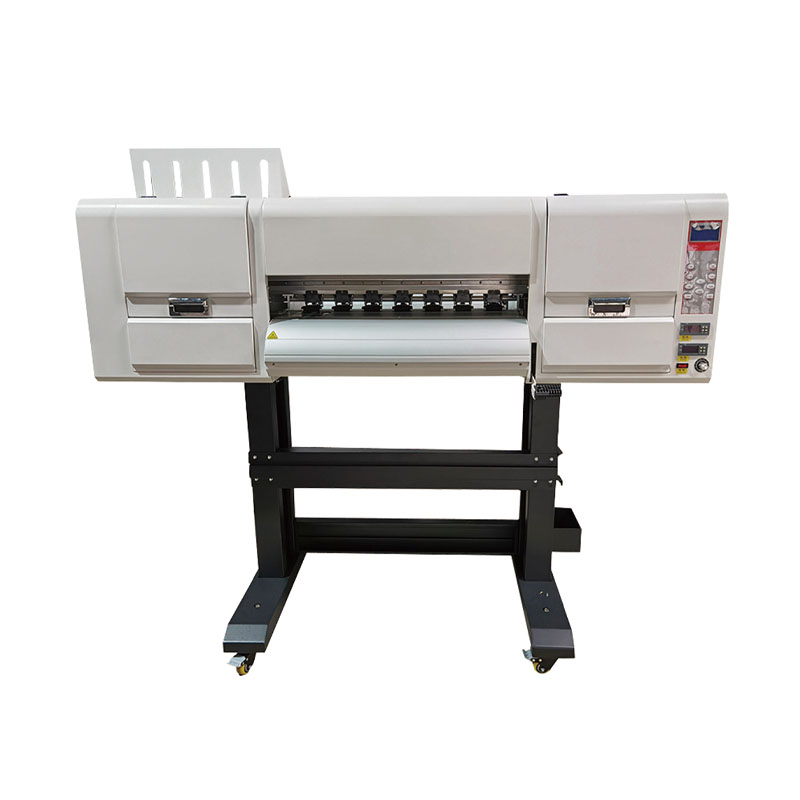

600mm Four-Head White Ink Heat Transfer Machine

Device Model

XC602-I3200A1

XC604-I3200A1

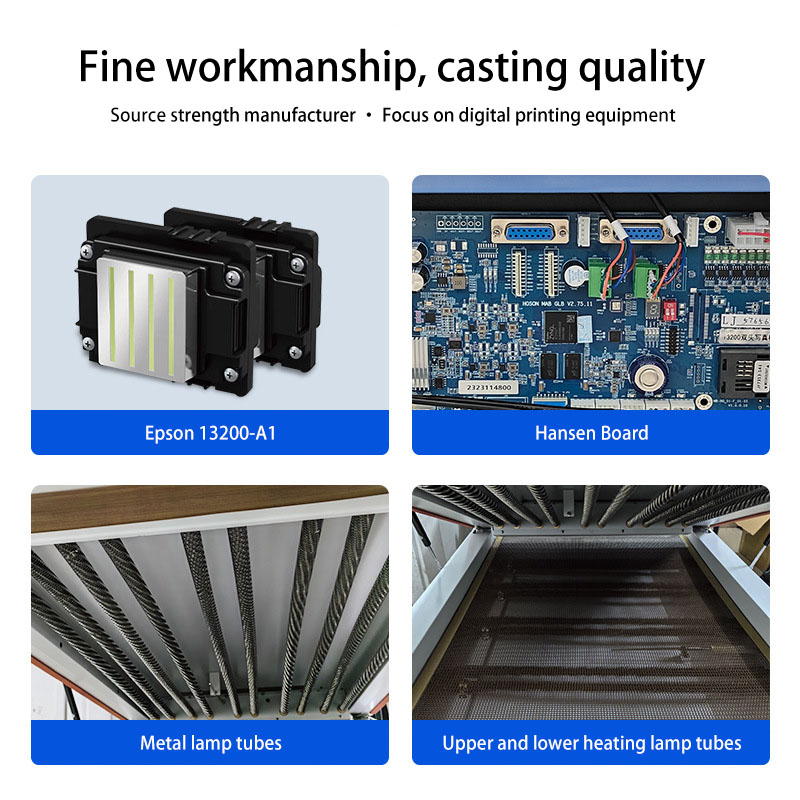

Printhead and Quantity

I3200-A1 2pcs

I3200-A1 4pcs

Printing Speed/Mode

4PASS:15m²/h   6PASS:8m²/h

4PASS:26m²/h   6PASS:15m²/h

Print Width

0.6M

Heating System

External dryer

Temperature/Humidity

Temperature:20-30℃,Humidity:45-65%

Power

Machine Power:800W

RIP Software

Maintip

Media Type

Heat transfer film

Dimensions

L1700mm*W750mm*H1550mm

Packing Dimensions

L1800mm*W810mm*H750mm

Net wright(KG)

130KG

Ross Wright(KG)

190KG

Mode

XC602-I3200A1

XC604-I3200A1

Printhead and Quantity

I3200-A1 2pcs

I3200-A1 4pcs

Printing Speed/Mode

4PASS:40m²h 6PASS:28m²/h

2PASS:95m²/h 4PASS:75m²h

Print Width

0.6M

Heating System

External dryer

Temperature/Humidity

Temperature:20-30℃,Humidity:45-65%

Power

Machine Power:1600W

RIP Software

Maintip

Name and model

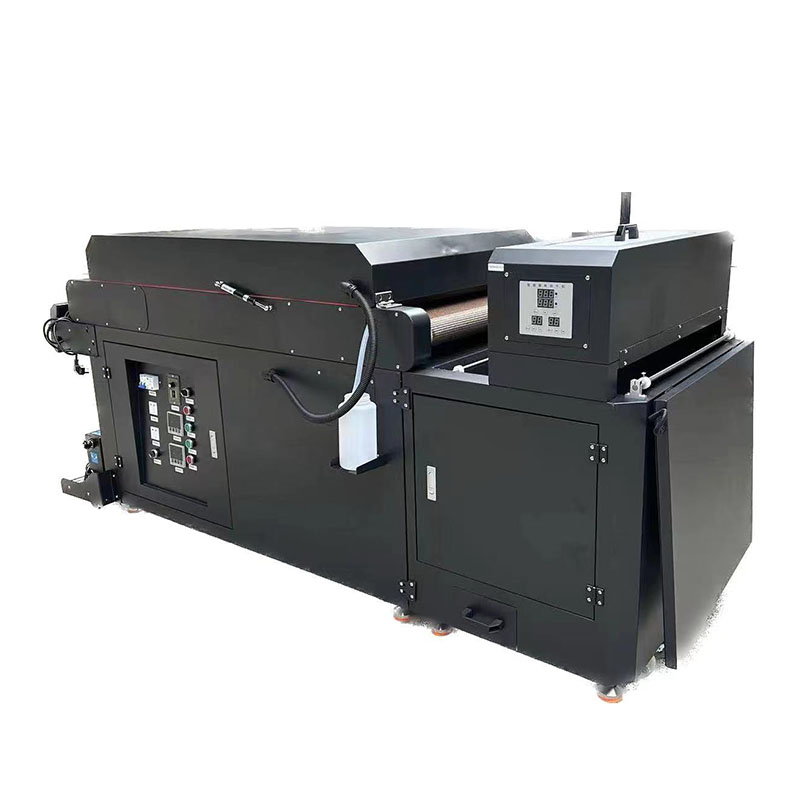

W650-4 powder spreading and drying machine

Retractable media width

0H600

Applicable media

Fabric: nylon, chemical fiber, face fabric, leather, PVC, PIC, EVA, etc.

Function

Intelligent control panel (powder shaking control, powder spreading control, front plate adding control) Independent tunnel adding control Belt speed adjustment Mechanical structure Powder spreading device

Material adsorption

Dual fans independently control front and rear adsorption

Heating function

Stainless steel heating tube, upper and lower double layer heating

Drying tunnel length

1200MM

Retracting function

Automatic induction rewinding

Voltage

220V

Electrical reference

Rated current 304 Rated power 7KW

Machine size

2700*960*1170M

Packing size

2400*1000*1260MM

Net weight

230KG

Gross weight

300KG
